Time Alignment | The Foundation of Natural Sound
In the design of a reference monitoring system, frequency response alone does not determine accuracy. Equally important is the temporal relationship between all acoustic events produced by the loudspeaker.

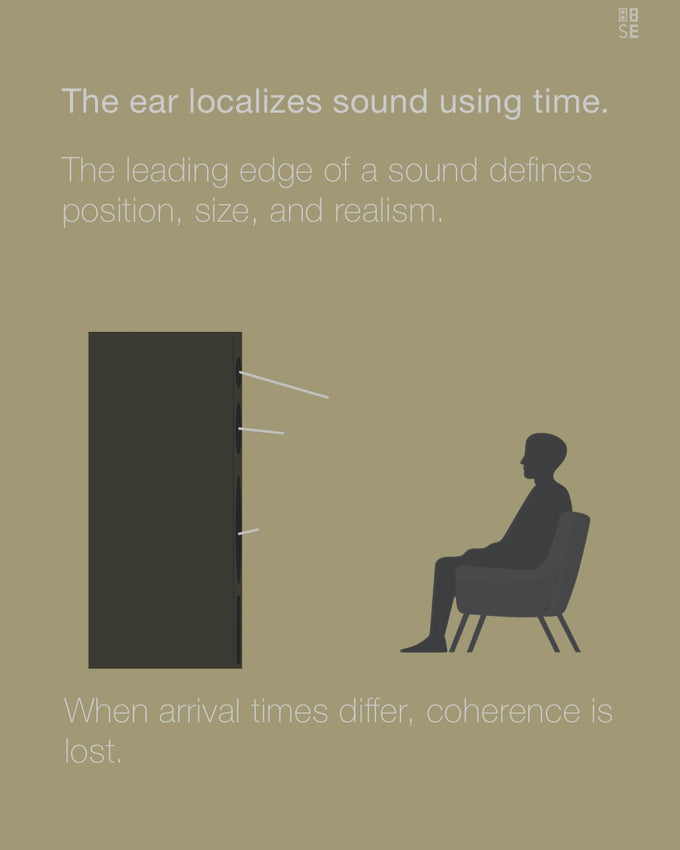

Human hearing is highly sensitive to timing. The leading edge of a waveform contains much of the information used to perceive image location, depth, focus, impact, and spatial realism. When timing relationships are altered, these qualities begin to degrade, even when tonal balance appears largely unchanged.
The Challenge of Multi-Way Loudspeakers
Most professional monitoring systems divide the audio spectrum between multiple drivers. Low, mid, and high frequencies are reproduced by separate transducers, each operating within its own range.

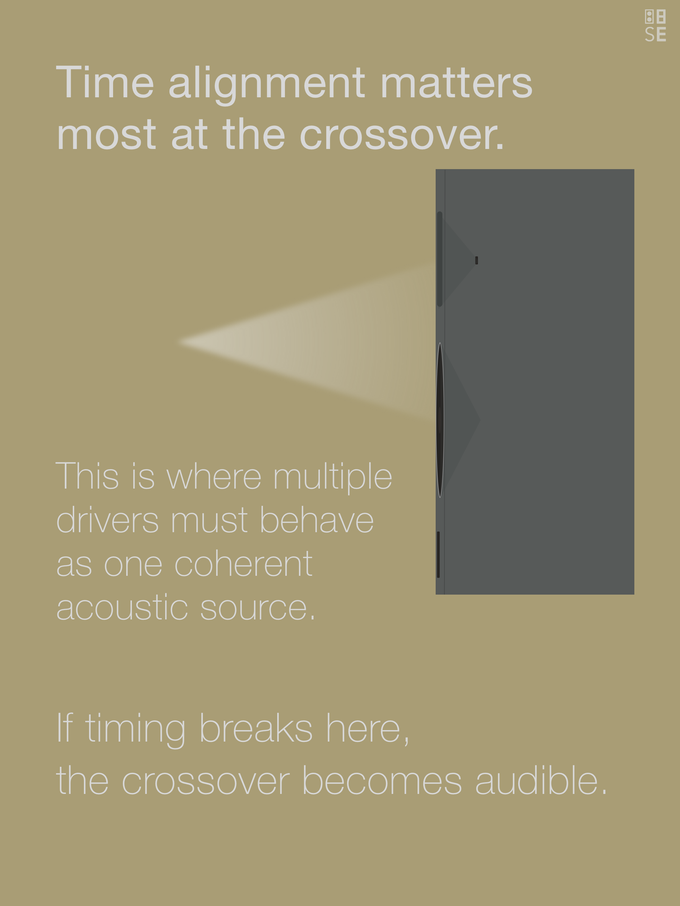

The transition between these drivers occurs within the crossover region, where adjacent drivers reproduce overlapping frequencies and must integrate as a single acoustic source.

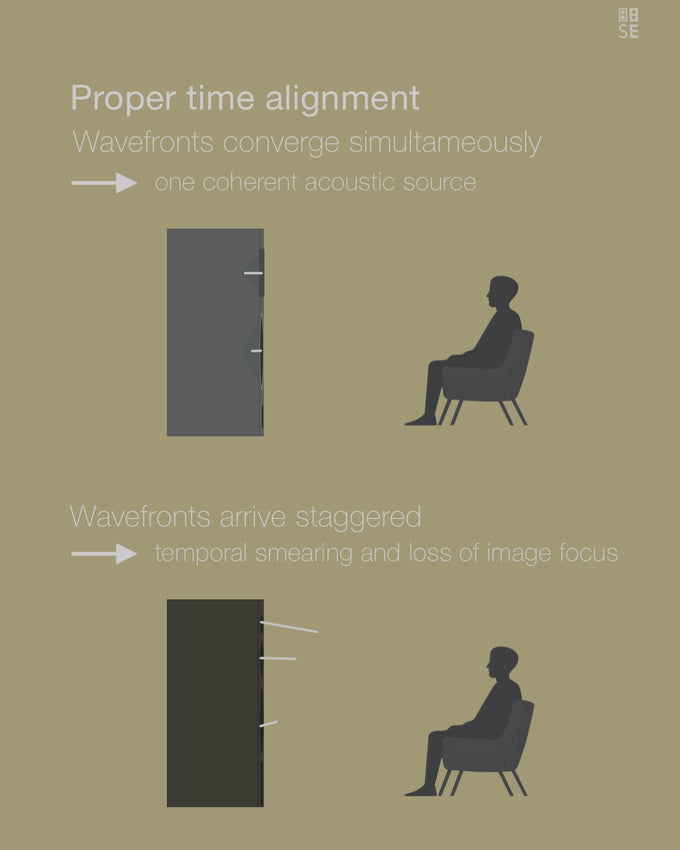

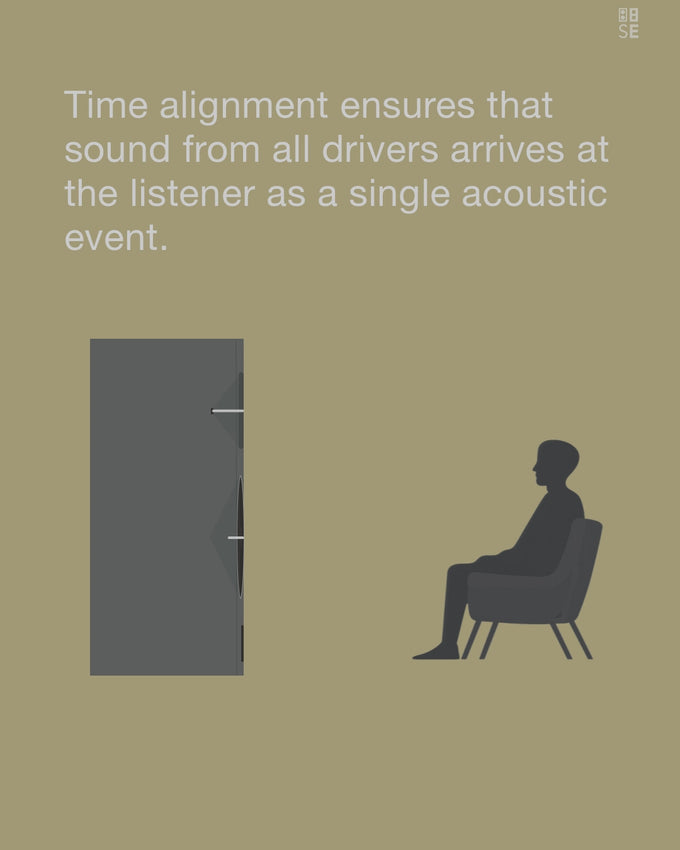

For this integration to occur correctly, the acoustic output from each driver must arrive in the proper temporal relationship.
If arrival times differ, the waveform is no longer reproduced as a coherent event. The loudspeaker may still measure acceptably in frequency response, yet transient accuracy, image stability, and spatial definition can be compromised.
The Objective: A Coherent Acoustic Source
One of the primary objectives in Strauss Elektroakustik loudspeaker design is the creation of a loudspeaker that behaves as a single acoustic source across its operating bandwidth.

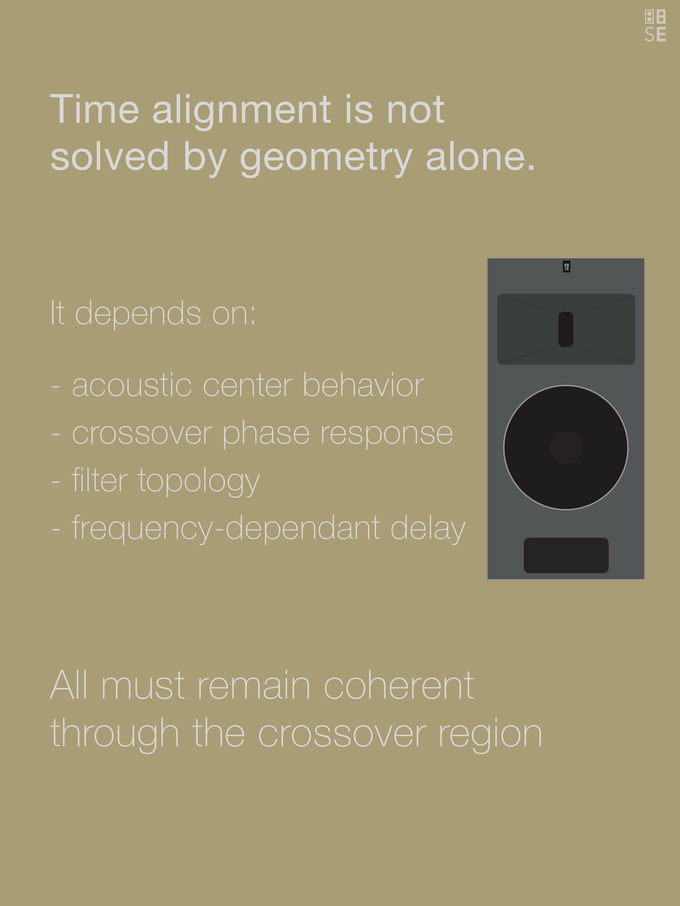

Achieving this requires careful control of:
- Acoustic Center Alignment – The effective acoustic origins of the drivers must be positioned so their outputs integrate correctly through the crossover region.
- Phase Relationship – The crossover topology must preserve coherent phase behavior between adjacent drivers.
- System Geometry – Driver placement, enclosure design, and waveguide behavior must support correct temporal integration.
- Frequency-Dependent Delay – The loudspeaker must maintain coherent behavior not only at a single frequency, but throughout the operating spectrum.
When these variables are properly resolved, the loudspeaker reproduces complex waveforms as unified acoustic events rather than as separate outputs from individual drivers.
Beyond Simple Delay

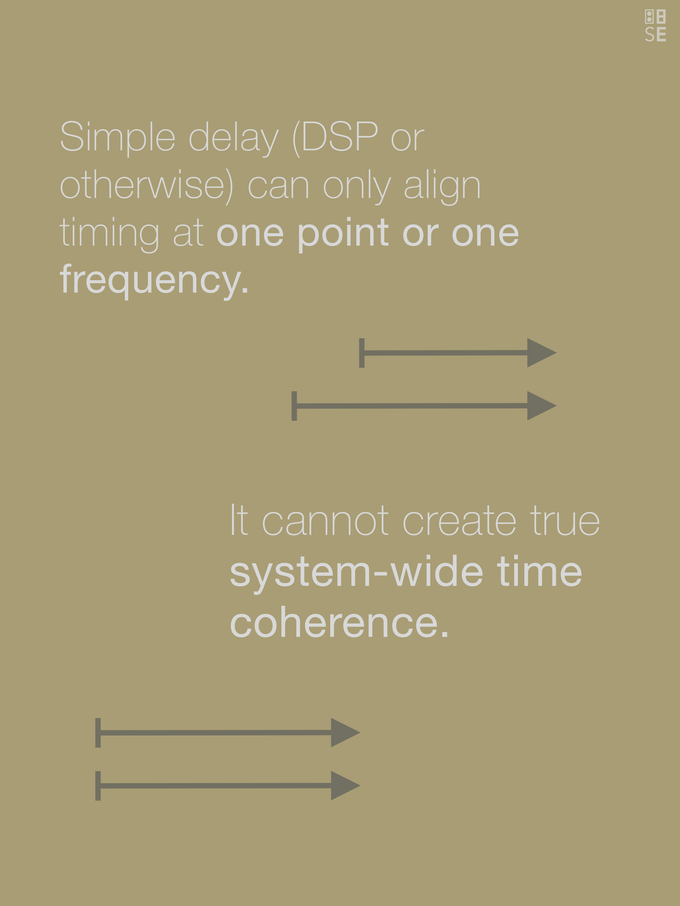

Time alignment is often misunderstood as the application of electronic delay.
While analog or digital delay can improve arrival-time coincidence at a chosen listening position, delay alone cannot correct the complete acoustic behavior of a loudspeaker system.
True time coherence depends on the interaction of driver behavior, crossover design, acoustic geometry, phase response, and radiation characteristics.
A loudspeaker that relies solely on delay compensation may achieve alignment at one point in space while remaining acoustically incoherent elsewhere.
Energy-Time Behavior
A useful way to observe time alignment is within the energy–time domain.
In a highly coherent system, acoustic energy is concentrated into a single dominant arrival event. Energy that would otherwise be spread across multiple arrivals is minimized, resulting in a cleaner temporal response.

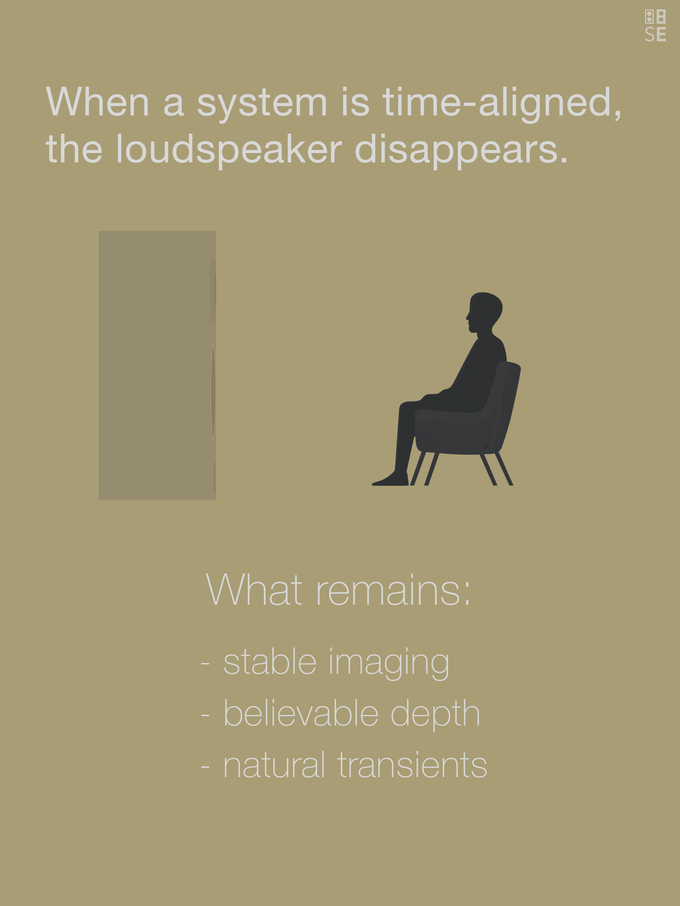

This contributes directly to:
- Stable stereo imaging
- Improved localization
- Greater depth perception
- More natural transient reproduction
- Increased transparency to the recording
Mechanical Resolution Over Electronic Compensation
A fundamental principle of Strauss loudspeaker design is that time coherence should be established through the physical and acoustic design of the system itself.
Driver selection, crossover architecture, waveguide geometry, enclosure construction, and acoustic alignment are resolved as part of the loudspeaker’s mechanical design rather than being delegated primarily to electronic correction.
By addressing these variables at their source, the loudspeaker is designed to behave as a coherent acoustic system, providing a stable reference for recording, mixing, mastering, and critical listening.
Time alignment is not an enhancement.
It is a prerequisite for natural sound.
