Amplifier

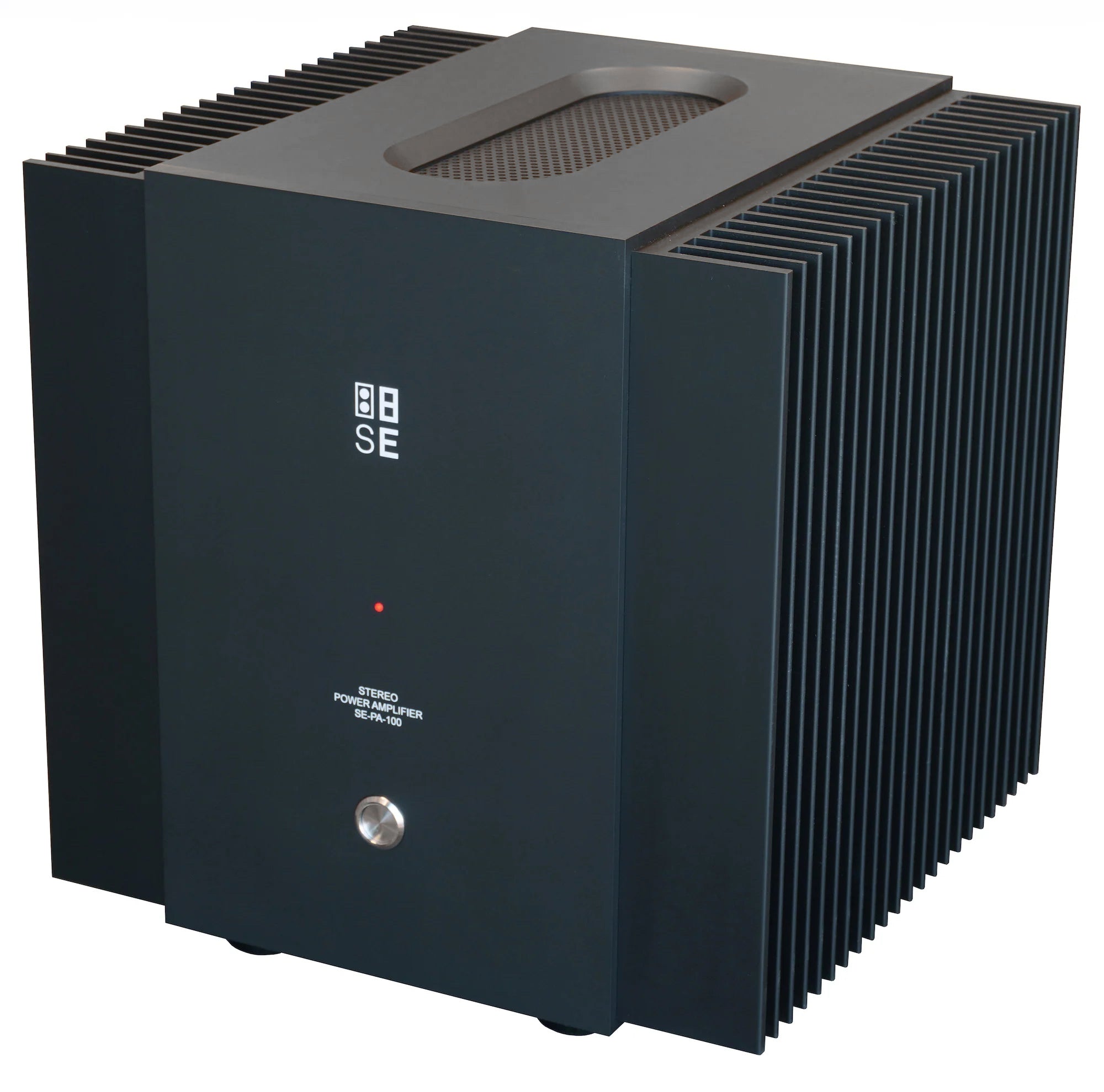

SE PA-100 | Stereo Power Amplifier

Powered by HGBT technology (High Gain Bandwidth Technology) and high-performance bipolar transistors, the SE PA-100 is a precision analog stereo amplifier engineered for very low output impedance, very high damping factor, and exceptional control across the audible range. With 2 × 120 W RMS into 8 Ω, it is designed for use with the SE NF-3 and SE MF-4, SE MF-4S, and can also drive the SE MF-2.1 in many applications.

Key Features

  • HGBT analog audio amplifier architecture (High Gain Bandwidth Technology)
  • Output stage with bipolar high-performance transistors
  • Low output resistance
  • Wide power bandwidth
  • Extremely low noise
  • Very low distortion and intermodulation
  • Soft-clipping behavior
  • Buffered power delivery across voltage and current stages
  • Regulated international power supply
  • Aluminum housing with 10 mm wall thickness as a fully grounded block
  • Convection cooling; no fans
  • Loudspeaker connections with low transition resistances

Price

$15,995.00
USD Pricing applicable to the U.S. market.
Shipping and taxes calculated at checkout.
Find Dealer

Technical Specifications

Rated power output 120 W RMS into 8 Ω (both channels); 160 W RMS into 4 Ω; 80 W RMS into 2 Ω
SOA Current limiting and temperature protection
Frequency response 5 Hz – 130 kHz (-3 dB)
Signal-to-noise ratio –96 dB / 1W into 8 Ω (20 Hz – 30 kHz); –100 dB A-weighted; –119 dB / 90 W A-weighted
THD + noise 0.006 % / 1 W into 8 Ω (20 Hz – 30 kHz); 0.0007 % CCIF/DFD 19+20 kHz
Output impedance 0.003 Ω to 0.006 Ω (20 Hz – 20 kHz)
Damping factor 2800 @ 100 Hz / 1 kHz; 1400 @ 10 kHz / 20 kHz (1 W into 8 Ω)
Input resistance 3 kΩ balanced XLR; 1.5 kΩ unbalanced RCA
Input sensitivity 0.93 V for rated power
Voltage gain 29.6 dB
AC mains voltage 100–240 VAC; ±10%; 50–60 Hz
Power consumption Min. 100 W (standby); Max. 400 W
Dimensions H 31 cm × W 32 cm × D 31 cm
Weight 23 kg
The SE PA-100 is a precision stereo amplifier built on Strauss HGBT (High Gain Bandwidth Technology) architecture. Its output stage uses bipolar high-performance transistors to achieve very low output impedance (0.003–0.006 Ω), resulting in damping factors exceeding 2800 at low and mid frequencies. The regulated power supply supports international AC mains voltage, while the 10 mm aluminum housing acts as a fully grounded thermal block with pure convection cooling. The design prioritizes low noise, minimal distortion, and maximum current delivery for demanding loudspeaker loads.
