Amplifier

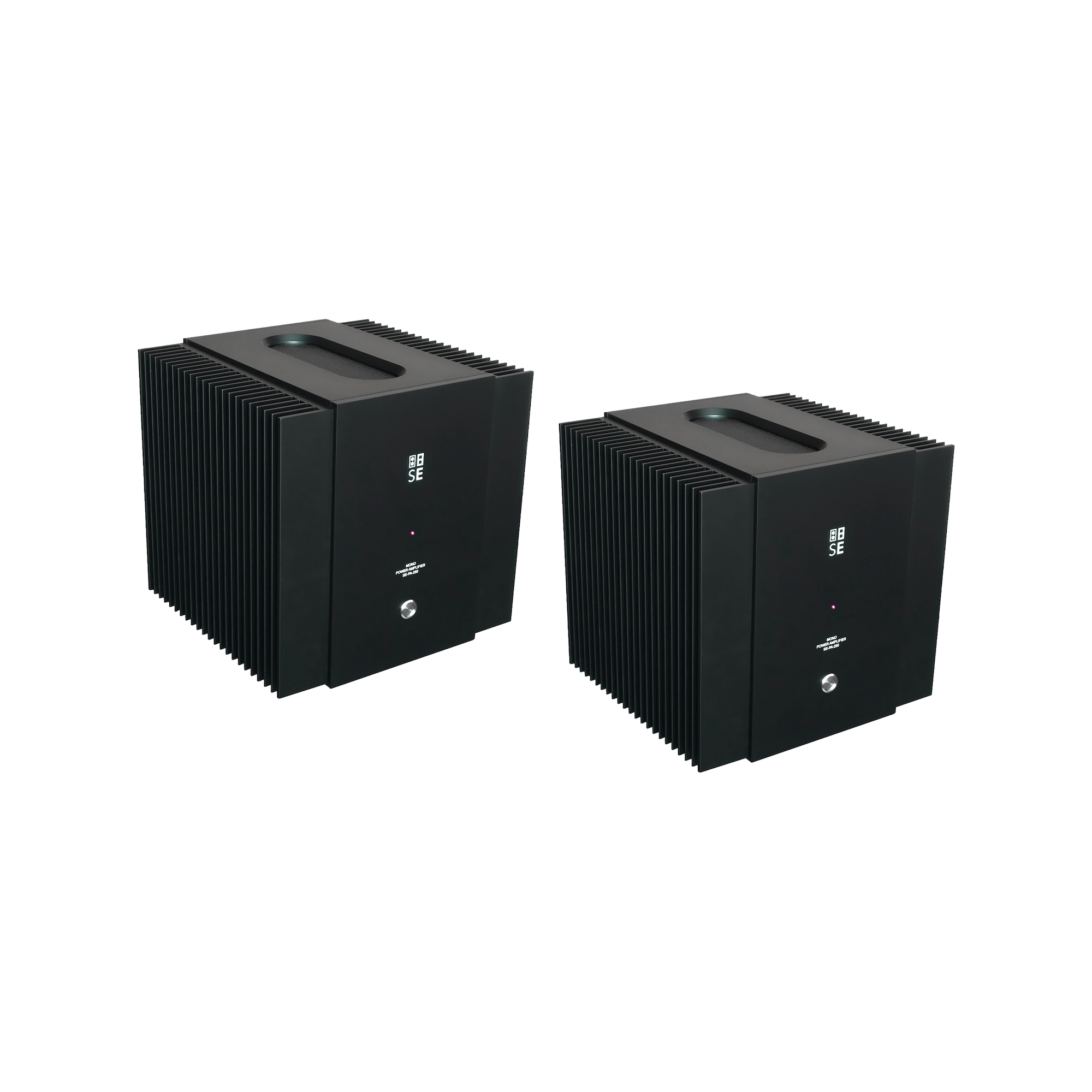

SE PA-250 | Dual Mono Power Amplifiers

Powered by HGBT technology (High Gain Bandwidth Technology) and high-performance bipolar transistors, the SE PA-250 is a precision analog mono amplifier engineered for very low output impedance, high damping factor, and substantial current delivery. With 300 W RMS into 8 Ω, it is intended for systems that require increased headroom, control, and low-frequency authority, including the SE MF-2.1 and other demanding loudspeaker systems.

Where greater headroom than the SE PA-100 is required, a dual-mono pair of SE PA-250 amplifiers provides the same amplifier concept with greater headroom and output capability.

Key Features

  • HGBT analog audio amplifier architecture (High Gain Bandwidth Technology)
  • Output stage with bipolar high-performance transistors
  • Low output resistance
  • Wide power bandwidth
  • Extremely low noise
  • Very low distortion and intermodulation
  • Soft-clipping behavior
  • Buffered power delivery across voltage and current stages
  • Regulated international power supply
  • Aluminum housing with 10 mm wall thickness as a fully grounded block
  • Convection cooling; no fans
  • Loudspeaker connections with low transition resistances

Price per pair

$35,995.00
USD Pricing applicable to the U.S. market.
Shipping and taxes calculated at checkout.
Find Dealer

Technical Specifications

Rated power output 300 W RMS into 8 Ω (1 kHz); 440 W RMS into 4 Ω; 80 W RMS into 2 Ω
SOA Current limiting and temperature protection
Frequency response 5 Hz – 130 kHz (-3 dB)
Signal-to-noise ratio –96 dB / 1W into 8 Ω (20 Hz – 30 kHz); –100 dB A-weighted; –119 dB / 90 W A-weighted
THD + noise 0.008 % / 1 W into 8 Ω (20 Hz – 30 kHz); 0.0009 % CCIF/DFD 19+20 kHz
Output impedance 0.005 Ω to 0.008 Ω (20 Hz – 20 kHz)
Damping factor 1600 @ 100 Hz / 1 kHz; 1200 @ 10 kHz; 1000 @ 20 kHz (1 W into 8 Ω)
Input resistance 3 kΩ balanced XLR; 1.5 kΩ unbalanced RCA
Input sensitivity 0.93 V for rated power
Voltage gain 33.8 dB
AC mains voltage 100–240 VAC; ±10%; 50–60 Hz
Power consumption Min. 100 W (standby); Max. 400 W
Dimensions H 31 cm × W 32 cm × D 31 cm
Weight 26 kg
The SE PA-250 extends the Strauss HGBT amplifier concept to mono operation with 300 W RMS into 8 Ω for systems demanding greater headroom and current delivery. Its bipolar output stage maintains very low output impedance (0.005–0.008 Ω) and damping factors of 1600 at low and mid frequencies. Like the PA-100, it uses a regulated power supply for international AC mains, a 10 mm aluminum housing as a fully grounded block, and convection cooling without fans. A dual-mono pair of PA-250 amplifiers provides the ideal drive solution for the SE MF-2.1 and other demanding loudspeaker systems.
